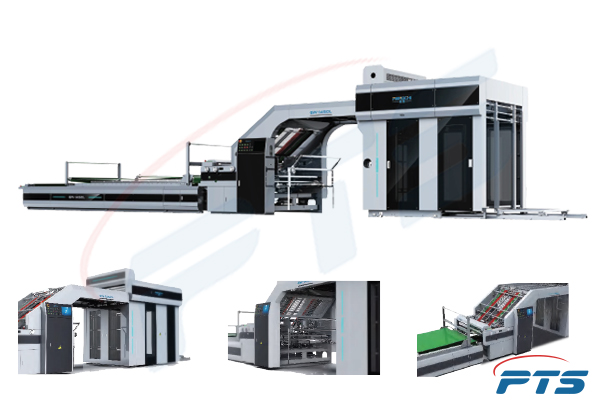

High-Speed Full Servo Flute Laminator – Fengchi
The Fengchi high-speed full servo flute laminator is an advanced solution designed to improve productivity and quality in the corrugated packaging industry. With cutting-edge technology, the machine ensures precise and efficient lamination at high speed, helping manufacturers optimize their operations.
Key Advantages
High speed & accuracy: Runs up to 165m/min, meeting large-scale production needs.
Full servo system: Ensures synchronized movement, smooth operation, and extended machine lifespan.
Smart alignment: Lamination accuracy of ±1mm, minimizing misalignment.
Cost efficiency: Reduces paper waste, lowers labor demand, and increases production efficiency.
User-friendly: Easy-to-use interface and convenient maintenance.
Reference video
Technical Specifications
| Model | GW-1450LP / BP | GW-1700LP / BP | GW-2200LP / BP |
|---|---|---|---|
| Max sheet size | 1450 x 1450mm | 1700 x 1650mm | 2200 x 1650mm |
| Min sheet size | 350 x 350mm | 400 x 400mm | 420 x 420mm |
| Surface paper thickness | 150 – 800g/m² | 150 – 800g/m² | 150 – 800g/m² |
| Bottom paper thickness | ≥ 300g/m² | ≥ 300g/m² | ≥ 300g/m² |
| Lamination accuracy | ±1mm | ±1mm | ±1mm |
| Max speed | 165m/min | 165m/min | 165m/min |
| Power | 16kW | 32kW | 32kW |
| Weight | 9000kg | 9000kg | 9200kg |
(LP: Front edge feeder / BP: Belt feeder)
The Fengchi high-speed full servo flute laminator is the optimal choice for packaging manufacturers looking to enhance product quality while optimizing costs.
👉 PTS is the official representative of Fengchi in Vietnam, ready to provide the most suitable solutions for your business.
